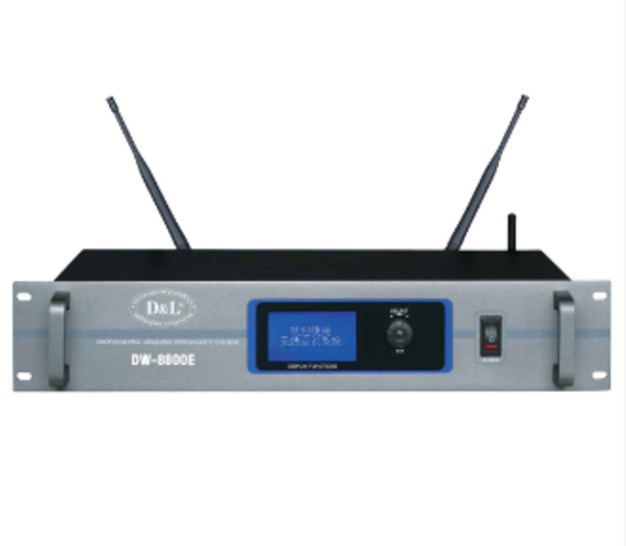

BỘ NHẬN MICRO DW-8800E

System Specifications:

– Frequency Stability: ±0.0005%, PLL phase-locked loop frequency control- Carrier Frequency Range: UHF 530-580MHz or 640-690MHz

– Modulation Method: FM

– Effective Working Distance: 40-50 meters

– Oscillation Method: PLL phase-locked loop frequency synthesis

– Sensitivity: S/N > 60dB with 6dBv input at 25KHz offset

– Bandwidth: 50MHz

– Maximum Deviation: ±45KHz

– Signal-to-Noise Ratio: >105dB

– Total Harmonic Distortion (T.H.D): <0.7% @1KHz

– Overall Frequency Response: 45Hz-18KHz ±1dB

– Power Supply: AC220-240V 1000mA

– Output Sockets: XLR balanced and 6.3mm unbalanced sockets
